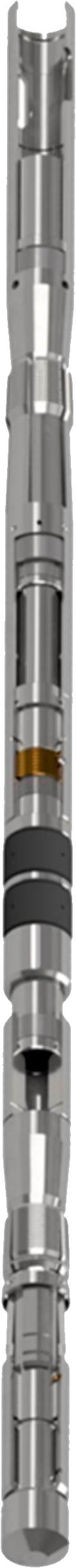

Retrievable Bridge Plugs

Description

The retrievable bridge plug meets the need for a low-cost, easy to run downhole plug in 2-3/8" to 4-1/2" completions with a 5.000-psi maximum working pressure. It is designed to be run and set in the well on slickline without any special setting tools and run and pulled using standard GS pulling tools.

It is adaptable and can be used as a gauge hanger, standing valve or injection valve.

Features and Benefits

→ Robust construction.

→ Low cost.

→ Simple setting procedure for dependable operation.

→ Can be converted to deploy injection valves or standing valves or can be used as a hanger.

→ Set on slickline with standard setting tools such as GS Pulling Tool, Link Jar and Stem Bar.

Deployment and Retrieval

→ The lower slip is set first by shock shearing a light retaining pin.

→ A check set tool can be used to confirm that the plug is set correct .

→ The Bridge Plug can be run on a standard slickline tool string using a standard GS Pulling Tool.
